SFP Optical Module—The Core Engine and Market Opportunities of High-Speed Network Interconnection

Chapter 1: SFP Optical Modules Technical Definition and Evolution

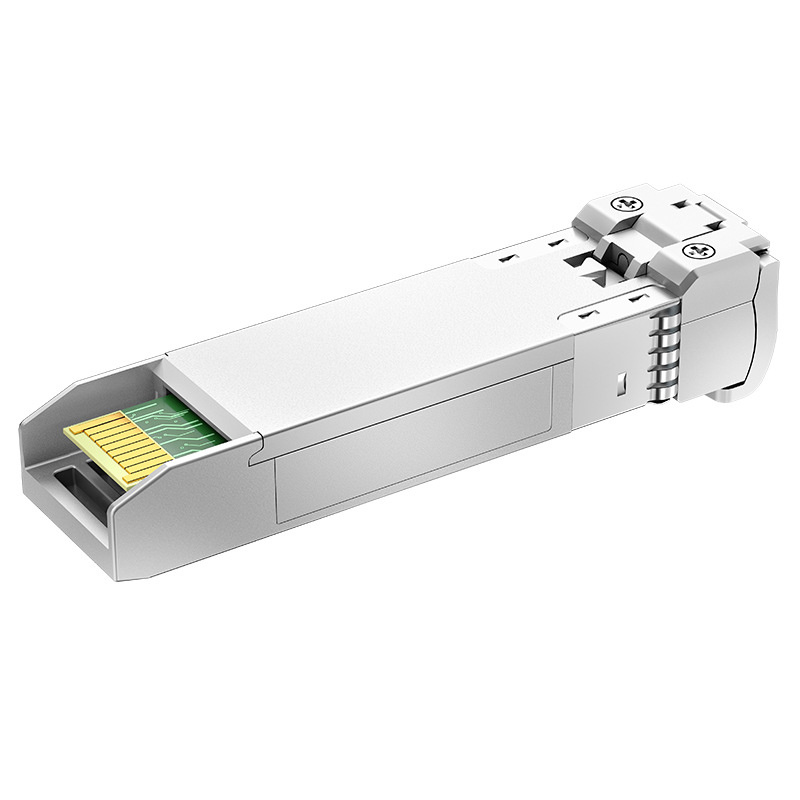

SFP (Small Form-factor Pluggable) optical modules are hot-swappable, miniaturized fiber optic modules that use standardized interfaces (LC/SC). They integrate photoelectric conversion, signal modulation, and digital diagnostic functions. Their core characteristics include:

Standardized Size : Volume is only 20mm×10mm×8mm, suitable for high-density switch ports;

Wide Rate Coverage : Supports rates from 1Gbps to 100Gbps, with 10G SFP+ modules dominating the market share;

Protocol Flexibility : Compatible with Ethernet, Fibre Channel (FC), and SONET/SDH standards.

Since the release of the MSA (Multi-Source Agreement) in 2001, SFP Optical Modules through iterations such as SFP+ (10G), SFP28 (25G), and SFP56 (50G), bandwidth density has increased by more than 10 times. 10G SFP Optical Modules With a mature industrial chain and high cost-effectiveness, they remain the preferred solution for enterprise network upgrades.

Chapter 2: SFP Optical Modules Diverse Application Scenarios and Commercial Value

SFP Optical Modules Applications have permeated the communications, cloud computing, and industrial IoT fields:

Data Center Interconnection ： 10G SFP Optical Modules Used for server-switch interconnection, with latency below 2μs, supporting low-latency data exchange for AI training clusters;

5G Fronthaul Network : 25G SFP28 modules meet the high-speed signal backhaul needs between base stations and core networks, with a transmission distance of up to 10km (LR standard);

Enterprise Campus Network : 10G SFP+ modules enable the deployment of fiber optic backbone networks between buildings, saving 60% on cabling costs compared to traditional copper cables;

Industrial Automation : Industrial-grade SFP optical modules (-40℃~85℃ wide temperature range) are used in machine vision and PLC control in smart factories.

According to Dell'Oro's prediction, the global SFP Optical Modules market size will exceed US$8 billion in 2025, with 10G SFP Optical Modules accounting for over 50%, becoming the "invisible infrastructure" of enterprise digital transformation.

Chapter 3: Performance Advantages and Technological Breakthroughs of 10G SFP Optical Modules

Compared to traditional Gigabit modules, 10G SFP Optical Modules (10G SFP+) achieves a performance leap through three innovations:

Low-Power Design : Using VCSEL lasers and low-power DSP chips, typical power consumption <1W, a 40% reduction compared to earlier models;

High Signal Integrity : Through pre-emphasis and equalization technology (CTLE/DFE), compensating for high-speed signal attenuation, bit error rate <1E-12;

Extended Transmission Distance : Single-mode version (10G LR) supports 10km transmission, multi-mode (10G SR) covers 300m, meeting the needs of multiple scenarios.

Chinese SFP Optical Module Manufacturers Through independent development of optical chips (such as 25G DFB lasers) and COB (chip-on-board) packaging technology, the 10G SFP modules cost has been reduced to 75% of similar international products, accelerating global market penetration.

Chapter 4: SFP Optical Modules Procurement Strategies and Supply Chain Trends

When choosing SFP optical module suppliers, enterprises need to consider the following dimensions:

Protocol Compatibility : Ensuring interoperability of the modules with switch brands (such as Cisco, Huawei, HPE);

Full Lifecycle Management : Supports DDM (Digital Diagnostic Monitoring), real-time monitoring of temperature, optical power, and bias current;

Customization Capabilities : Rapid response to non-standard needs such as industrial-grade and enhanced versions (e.g., 10G ER supporting 40km).

Current supply chain trends show two major directions:

Accelerated Domestic Substitution : Chinese SFP Optical Modules manufacturers account for 60% of global production capacity, with Huawei, Optosky Technology, and other companies leading the export of 10G SFP optical modules;

Accelerated Technological Iteration : Linear direct drive (LPO) and silicon photonics technology are driving the evolution of next-generation SFP modules towards lower power consumption and higher integration.

Conclusion
From Gigabit to 10 Gigabit, and to future 50G/100G standards, SFP Optical Modules has always been the core driving force for network infrastructure upgrades. With the implementation of strategies such as "East Data, West Computing" and edge computing, 10G SFP optical modules will continue to unleash market potential. Chinese companies, with their technological independence and agile delivery capabilities, are leading the global SFP Optical Modules industry's transformation from "cost competition" to "value innovation," providing efficient and reliable interconnection foundations for various industries.
