LAN Transformer Wholesaler - Jiaxun Smart Technology's Technological Empowerment and Supply Chain Innovation

I. LAN Transformers Technical Architecture and Market Value

1.1 LAN Transformers Core Function Analysis

LAN Transformers (LAN Transformer), as the "signal gatekeeper" for Ethernet communication, undertakes three key functions:

Electrical Isolation : Blocks current loops caused by ground potential differences between devices through 1500Vrms/1min insulation withstand voltage.

Impedance Matching : Precisely achieves 100Ω differential impedance, with error controlled within ±5% (compliant with IEEE 802.3 standard).

Common Mode Rejection : Attenuation capacity for interference signals ≥35dB in the 1MHz-250MHz frequency band.

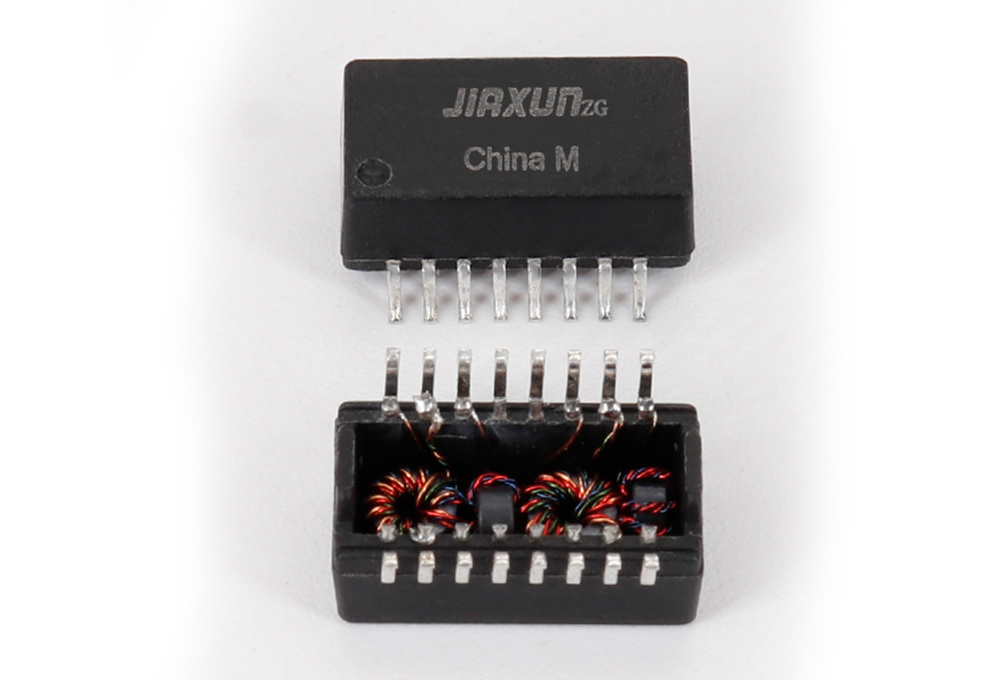

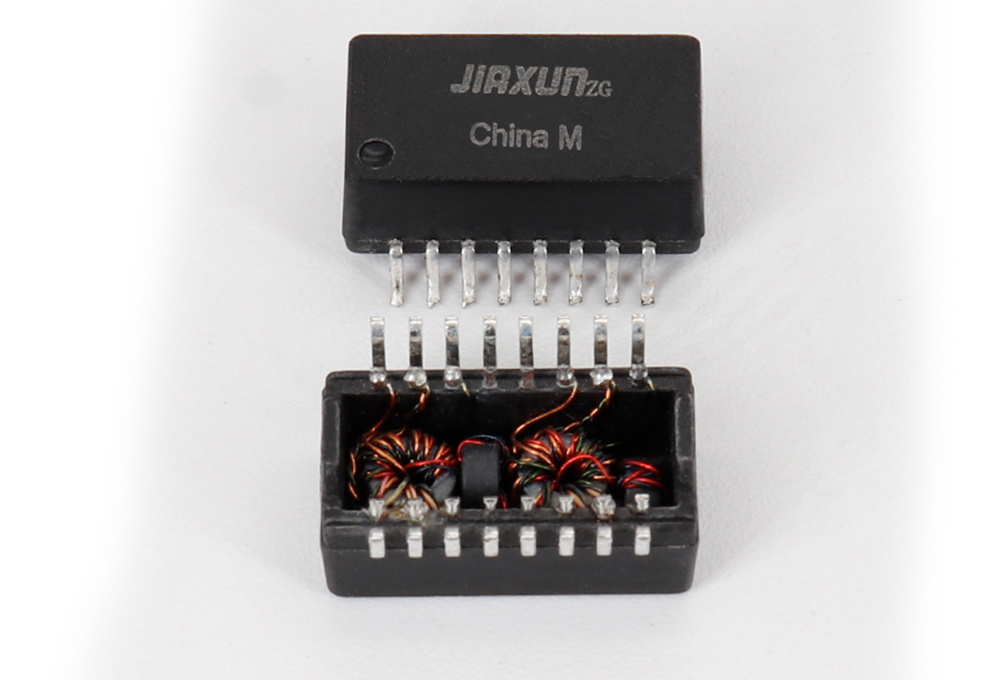

Current mainstream products adopt a 4-winding × 2-wire package structure, with an extended operating temperature range of -40℃~+125℃, supporting 10/100/1000Mbps full-rate adaptive. Represented by Jiaxun Intelligent Technology, Chinese LAN Transformer Wholesalers , have achieved fully automated magnetic ring winding technology, improving enameled wire winding precision to ±0.5 turns, with a product pass rate of 99.8%.

1.2 Technological Breakthroughs in China's Supply Chain

Domestic manufacturers have broken overseas monopolies through three innovations:

Developing high-permeability ferrite materials (initial μ value ≥12000).

Nanocoating technology improves damp-heat resistance to 1000 hours (85℃/85%RH).

Integrating TVS diodes to achieve 8kV ESD protection level.

II. Jiaxun Intelligent Technology's Differentiated Competitiveness

2.1 Technology R&D System

As Chinese LAN Transformer Wholesaler a leading enterprise, Jiaxun Intelligent Technology has established a "trinity" R&D architecture:

Basic Materials Laboratory : Annually invests 5% of revenue in magnetic material modification research.

Automated Production Line : 18 fully automated winding machines achieve a daily production capacity of 600,000 units.

Testing and Verification Center : Equipped with high-end equipment such as TDR time domain reflectometer and network analyzer.

2.2 Supply Chain Service Model Innovation

Jiaxun Intelligent Technology, as a professional LAN Transformer Wholesaler , has pioneered the "3D Service System":

Design-in Support : Provides PCB layout simulation files and EMC rectification solutions.

Delivery Assurance : Three major central warehouses in East China/South China/Southwest China achieve 12-hour urgent response.

Data Transparency : Customers can query raw material batches and quality inspection reports in real-time through the ERP system.

III. Multi-Industry Solutions for Network Transformers

3.1 Industrial IoT Scenarios

Addressing the stringent demands of industrial environments, Jiaxun provides enhanced solutions:

Anti-vibration design: Passed 10G acceleration/20Hz-2000Hz random vibration test.

Wide temperature range support: -55℃~+105℃ operating temperature range.

Anti-corrosion treatment: Salt spray test reaches 96 hours (ASTM B117 standard).

In a smart factory project, industrial switches using Jiaxun's custom transformers saw MTBF (Mean Time Between Failures) increase from 30,000 hours to 52,000 hours.

3.2 Consumer Electronics Field

Addressing the trend towards miniaturization of terminal devices, Jiaxun developed:

Ultra-thin transformers (2.8mm thick) for 8K TV HDMI2.1 interfaces.

Automotive-grade products meet ISO 16750-3 shock resistance requirements.

Supports 2.5G/5G multi-rate compatible design.

After a global TOP3 router brand adopted Jiaxun's solution in 2022, network port failure rates decreased by 58%.

IV. Industry Trends and Strategic Procurement Recommendations

4.1 Technology Evolution Directions

High-frequency : Demand for 10GBase-T supported transformers increases by 35% annually.

Integration : SiP modules integrating PHY chips and transformers.

Intelligence : IoT-type products with built-in temperature sensors.

4.2 Preferred Supplier Evaluation Criteria

Technical Qualifications : Verify system certifications such as IATF 16949/ISO 14001.

Customization Capability : Can test sample impedance tolerance reach ±3%?

Delivery Flexibility : Confirm feasibility of 72-hour delivery for urgent orders.

A new energy vehicle company, by choosing Jiaxun as a core LAN Transformer Wholesaler , increased the pass rate of vehicle gateway EMC certification from 82% to 96% and compressed the R&D cycle by 30%.
