RJ45 Connector Transformer—Core Technology and Application Value for Building Efficient Network Connections

Chapter One: RJ45 Connector Transformer Technical Definition and Core Functions

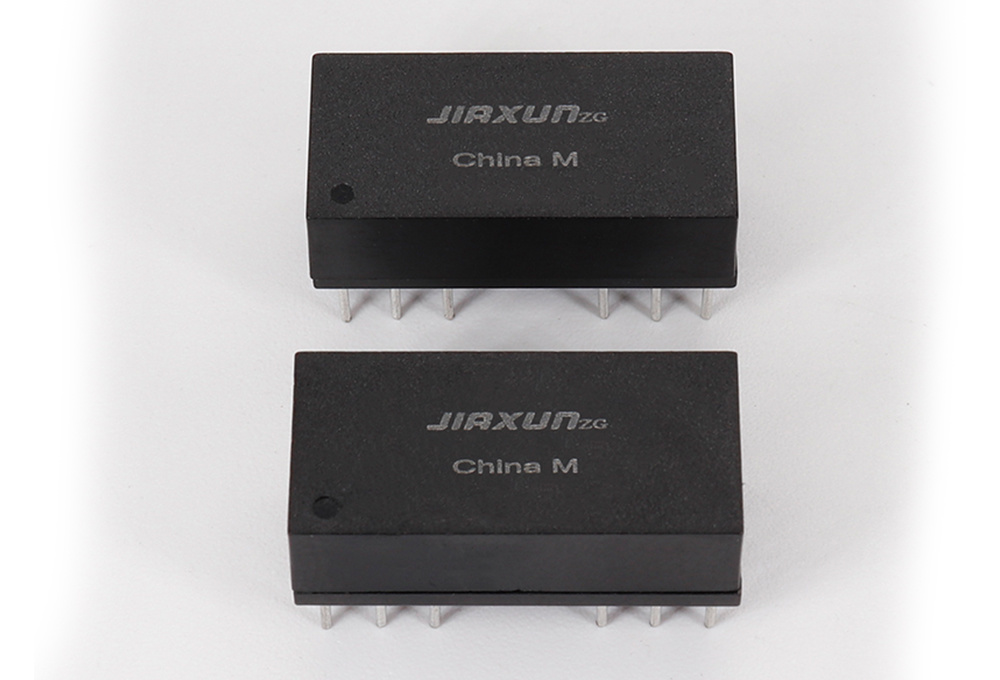

RJ45 Connector Transformer ( RJ45 LAN Transformer ) is a modular device integrating magnetic components, built into the RJ45 interface, and responsible for signal coupling, electrical isolation, and common mode noise filtering. Its core structure includes:

Magnetic Core and Coils : Utilizes high-permeability ferrite cores with precise winding processes to achieve a 1:1 or 1:2.5 turns ratio, supporting 10/100/1000Mbps transmission rates;

Common Mode Choke : Suppresses common mode interference up to 30dB, ensuring signal integrity over long distances (≤100 meters);

Isolation Barrier : Provides electrical isolation of over 1500Vrms, preventing equipment damage caused by lightning strikes or ground loops.

For example, in PoE (Power over Ethernet) applications, RJ45 LAN Transformer by separating data and power channels, it avoids interference from high-frequency signals on DC power, while supporting IEEE 802.3af/at/bt standards, with an output power of up to 90W. Leading manufacturers further integrate ESD protection diodes, raising the electrostatic protection level to ±15kV, extending equipment lifespan.

Chapter Two: RJ45 Connector Transformer Its Four Major Core Advantages

1. Enhanced Signal Integrity
Through impedance matching (100Ω ±10%) and low insertion loss (<0.5dB @ 100MHz), RJ45 LAN Transformers reduce signal reflection and attenuation, ensuring a bit error rate below 10^-12 for Gigabit transmission.

2. Electromagnetic Interference (EMI) Immunity
The shielded design combined with a dual-layer winding structure effectively suppresses Class B electromagnetic radiation, meeting FCC Part 15 and CISPR 32 standards, suitable for sensitive scenarios such as medical and automotive electronics.

3. High Integration and Space Saving
Integrating transformers, filters, and RJ45 connectors into a single module (e.g., MagJack), reducing PCB footprint by 40%, aiding in the design of compact devices (e.g., 5G routers).

4. Wide Temperature Range Reliability
Industrial-grade RJ45 Connector Transformer can operate stably in environments from -40℃ to 85℃, with MTBF (Mean Time Between Failures) exceeding 100,000 hours, suitable for outdoor base stations and industrial control systems.

Chapter Three: RJ45 Connector Transformer Industry Application Scenarios

1. Industrial Automation and IIoT
In PLCs and industrial switches, RJ45 LAN Transformer withstands vibration and oil contamination, ensuring zero packet loss transmission of real-time control signals under PROFINET and EtherNet/IP protocols.

2. Data Centers and Cloud Computing
10G SFP+ optical modules achieve copper cable access through built-in RJ45 transformers, reducing wiring costs for short distances (≤30 meters), while supporting hot-swapping maintenance.

3. Smart Home and Consumer Electronics
Home routers and NAS devices utilize RJ45 Connector Transformer to achieve lightning protection design, ensuring continuous home network connectivity in harsh weather.

4. Automotive Electronics and In-Vehicle Networks
AEC-Q200 certified RJ45 transformers support Automotive Ethernet (100BASE-T1) for high-speed data transmission between ADAS cameras and domain controllers.

5. Telecommunications Infrastructure
5G AAU (Active Antenna Unit) uses enhanced RJ45 LAN Transformer , resistant to humidity and salt spray corrosion, ensuring the reliability of base station backhaul links.

Chapter Four: RJ45 Connector Transformer Precision Manufacturing and Supply Chain Management

1. Core Manufacturing Processes

Core Forming : Nanocrystalline cores undergo sintering and coating treatment to reduce eddy current loss;

Automated Winding : Six-axis robotic arms wind coils with an accuracy of ±0.5 turns, ensuring impedance consistency;

Laser Welding Packaging : Fully sealed metal casing isolates moisture, enhancing IP67 protection rating.

2. Testing and Certification

Electrical Performance Testing : Network analyzer verifies insertion loss, return loss, and common mode rejection ratio;

Environmental Stress Screening : 85℃/85% RH aging for 1000 hours, -55℃~125℃ thermal shock cycles;

Compliance Certification : Passed UL, CE, RoHS 2.0, complying with TIA-568.2-D industry standard.

3. Supply Chain Advantages
Leading RJ45 Connector Transformer manufacturers provide:

Scaled Delivery : Fully automated SMT production lines support a monthly capacity of 20 million units, with a delivery cycle of ≤15 days;

Customized Services : Adjust turns ratio, shielding method, and pin assignment as required;

Global Logistics Network Maintain bonded warehouses in North America, Europe, and Asia to reduce customer inventory costs.

Conclusion
In the face of explosive demand for 5G and the Industrial Internet, RJ45 connector transformer manufacturer is continuously pushing the limits of performance through material innovation and process upgrades. Choosing a partner with full-process quality control and an agile supply chain will be key for companies to build highly reliable network equipment and win market competition.
