RJ45 Jack Supplier Guide: Technical Analysis and Innovation Solutions from Jiaxun Smart Technology

Chapter 1: RJ45 Jack Technical Characteristics and Industry Standards

RJ45 Jack It is a key interface in the network cabling system, responsible for realizing the physical connection between devices and twisted pairs, and is widely used in switches, routers, network panels, and other scenarios. Its core characteristics include:

Transmission Performance : Supports Cat5e to Cat8 cables, bandwidth covers 100MHz to 2000MHz, compatible with 10/100/1000M and 2.5G/10G Ethernet standards.

Modular Design : Adopts a detachable structure (such as RJ45 modular jack), convenient for quick replacement or upgrade, reducing maintenance costs.

Durability : Gold plating thickness of contacts ≥1.27μm, plugging and unplugging life exceeds 1000 times, meeting the needs of high-intensity industrial environments.

Mainstream RJ45 jacks must comply with TIA-568-D and ISO/IEC 11801 standards, and some industrial-grade products also need to pass IP67 protection certification. As a professional RJ45 Jack Supplier Jiaxun Intelligent Technology, by optimizing the contact spring structure (such as dual-contact design), reduces insertion loss to below 0.3dB, significantly improving signal integrity.

Chapter 2: Application Scenarios and Market Trends of RJ45 Modular Jacks

RJ45 Modular Jack With its flexibility and scalability, it has become a core component of modern network architecture, with typical applications including:

Enterprise-level Patch Panel : Supports high-density port deployment (such as 48-port rack-mounted patch panels), simplifying data center cable management.

Smart Building Panel : Embedded in an 86-type wall-mounted panel, providing plug-and-play network access for office areas, supporting PoE++ power supply.

Industrial Control Cabinet : Uses a metal shielded shell and shockproof buckle design to resist electromagnetic interference and mechanical vibration in factory environments.

Internet of Things Terminal : Integrated into a smart home gateway, providing stable connection for security cameras and smart central control.

According to statistics from research institutions, in 2024, the global RJ45 Modular Jack Supplier market size will exceed US$1.8 billion, with the fastest growth in demand in the Asia-Pacific region (compound annual growth rate of 12%). Enterprise users prefer to choose products that support customized markings (such as color coding) and are compatible with multiple wire gauges (22-26AWG) to adapt to complex deployment environments.

Chapter 3: RJ45 Jack Supplier Core Competitiveness and Selection Strategy

Choosing high-quality RJ45 Jack Supplier needs to focus on the following dimensions:

Technical Adaptability : Verify whether the jack supports high-speed transmission (such as 10GBase-T), PoE level (802.3bt standard), and heat dissipation design.

Manufacturing Process : Prefer products using LCP (liquid crystal polymer) insulators and phosphor bronze contacts to ensure a wide operating temperature range of -40℃~85℃.

Certification System : Confirm that the supplier has passed UL, CE, RoHS, and other certifications. Industrial-grade products need to additionally have EN 50155 (rail transit) or IEC 61850-3 (power communication) compliance.

Service Capability : Evaluate the supplier's rapid prototyping cycle (such as 72-hour prototype delivery), bulk order response speed, and the professionalism of the technical support team.

Taking the leading RJ45 Modular Jack Supplier as an example, its product line usually covers various models such as shielded and unshielded, right-angle and straight-through types, and provides gold/nickel-plated contact options to adapt to different cost and performance requirements.

Chapter 4: Jiaxun Intelligent Technology—RJ45 Jack Innovative Solutions

As a leading domestic RJ45 Jack Supplier Jiaxun Intelligent Technology (JX-Tech), relying on its independent R&D capabilities and intelligent manufacturing system, has launched the following star products:

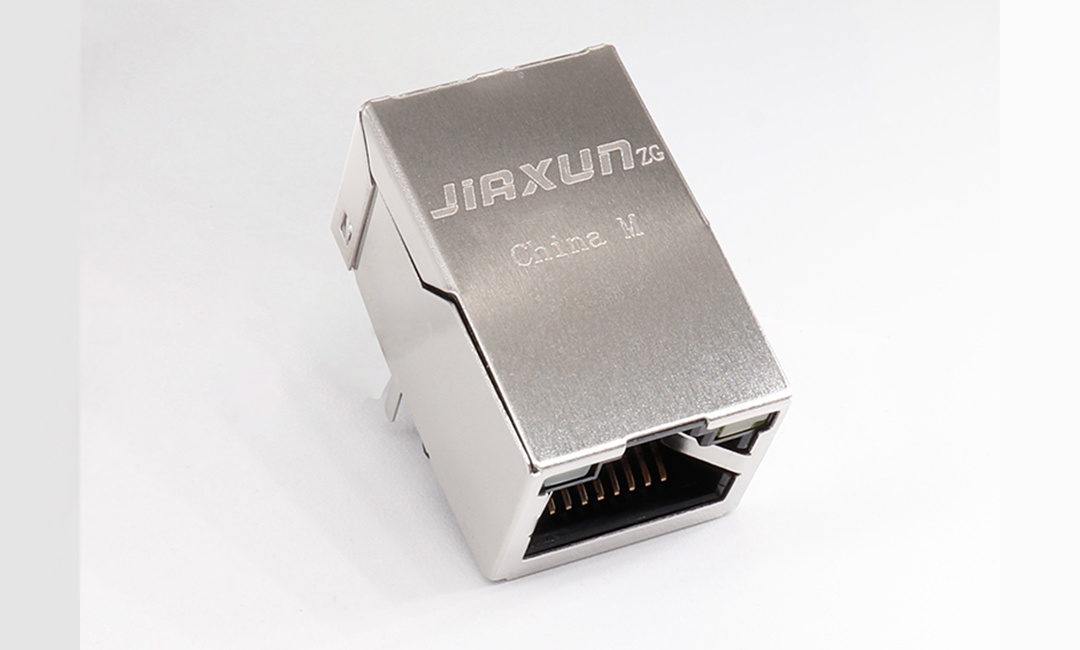

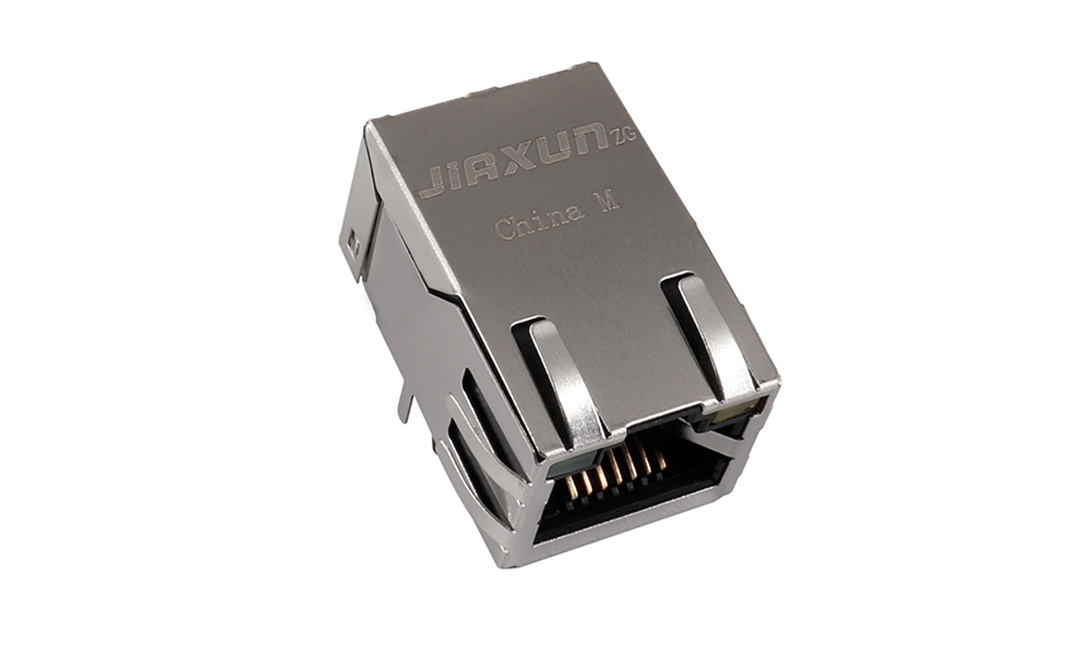

1. 10 Gigabit Shielded RJ45 Modular Jack (JX-CAT8-S)

Technical Parameters : Supports Cat8 standard, 2000MHz bandwidth, transmission rate up to 40Gbps (within 5 meters);

Innovative Design : Full metal shielding layer + spring-type grounding terminal, EMI suppression capability increased by 60%;

Application Scenarios : Core switches in data centers, ultra-high-definition video production networks.

2. Industrial-grade Waterproof Jack (JX-IP67-P)

Core Advantages : IP67 protection level, resistant to salt spray, oil stains, and -40℃ low temperature;

Customized Service : Supports aviation plug to RJ45 interface conversion, meeting the communication needs of vehicles and ships.

3. Intelligent PoE++ Power Supply Module (JX-POE-90W)

Functional Highlights : Compatible with 802.3bt standard, single-port output 90W, built-in overload and short-circuit protection;

Industry Cases : Has been deployed in large quantities in Hikvision AI camera projects, with power supply stability reaching 99.99%.

4. High-Density Patch Panel Solution

Modular Architecture Supports the integration of 48 RJ45 modular jacks within a 1U space, equipped with blind-plug guide slots and a heat dissipation air duct;

Customer Value Assisted a Tencent Cloud data center in reducing cabling costs by 30% and improving operation and maintenance efficiency by 50%.

Jiaxun Intelligent Technology has passed ISO 9001 and IATF 16949 dual system certifications, providing full-process services from design consultation to mass delivery, and has become a strategic-level partner for companies such as Texas Instruments, Samsung, Cisco, Siemens, and Intel. RJ45 Modular Jack Supplier 。

Conclusion

As the "nerve endings" of network infrastructure, the performance of RJ45 jacks directly affects system stability and scalability. Choosing a technologically advanced and service-oriented provider RJ45 Jack Supplier ，such as Jiaxun Intelligent Technology, can provide a solid guarantee for enterprises to build efficient and future-oriented network architectures.
