Gigabit RJ45 Connector—The Cornerstone and Selection Guide for Stable Networking

Chapter 1: Technical Parameters and Structural Design of 100Mbps RJ45 Connectors

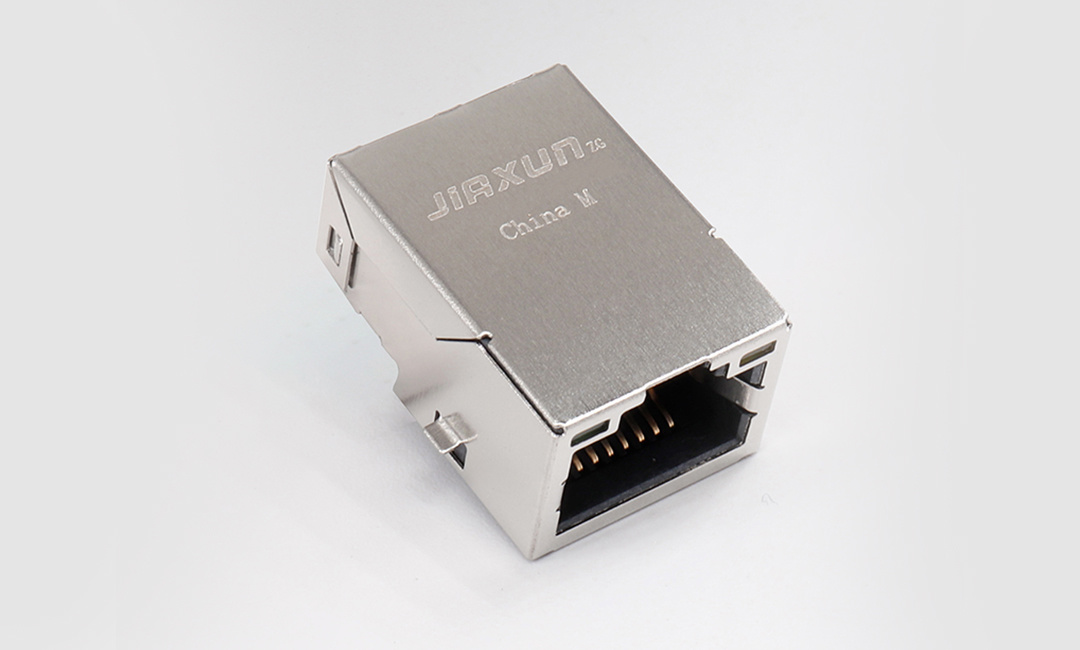

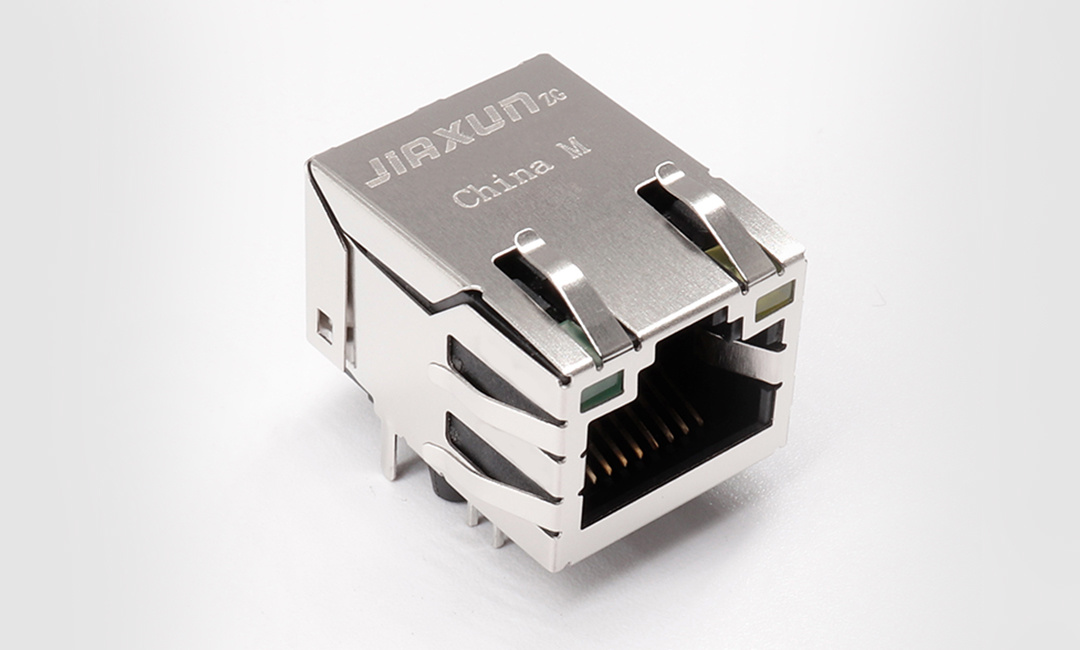

100Mbps RJ45 Connector (i.e., 100Mbps RJ45) is a basic component supporting 100Mbps Ethernet (IEEE 802.3u standard), using a standard 8P8C interface design, and compatible with Cat5/Cat5e twisted-pair cables. Its core structure includes:

Contact System : Made of phosphor bronze or beryllium copper alloy, with nickel or gold plating (thickness ≥0.76μm), ensuring stable contact resistance (≤20mΩ) and oxidation resistance.

Insulator : Uses high-temperature nylon material (UL94 V-0 certified), with a temperature resistance range of -40℃~85℃, preventing deformation due to friction during insertion and removal.

Housing Structure : Unshielded (UTP) housings are mostly made of transparent PC material for easy wire order checking; industrial-grade products are equipped with a metal shielding layer to reduce electromagnetic interference (EMI).

100Mbps RJ45 Connector The transmission bandwidth is 100MHz, supporting full-duplex communication, and the wire order follows the T568A/B standard. Compared to the Gigabit version, it has a larger contact spacing (1.02mm vs. 0.6mm), reducing manufacturing costs by 30%~50%, making it the preferred choice for upgrading old equipment or cost-sensitive projects.

Chapter 2: Core Application Scenarios of 100Mbps RJ45 Connectors

Although Gigabit networks are becoming increasingly prevalent, 100Mbps RJ45 still plays an irreplaceable role in the following scenarios:

Industrial Control Networks : Suitable for communication between low-speed devices such as PLCs and sensors, with strong anti-interference capabilities and compatibility with industrial Ethernet protocols (such as Profinet, EtherCAT).

Small and Medium-sized Enterprise Office Networks : Supports devices such as IP phones and basic surveillance cameras, meeting the daily needs of file sharing and email sending and receiving, avoiding excessive investment in Gigabit equipment.

Smart Home Relay Nodes : Used for low-bandwidth IoT devices such as smart sockets and curtain controllers, simplifying power supply wiring through PoE (15.4W).

Educational Institution Laboratories : When renovating old computer classrooms, 100Mbps RJ45 is compatible with existing switches, reducing upgrade costs.

With 100Mbps RJ45 Connector Factory as an example, a certain automobile manufacturing plant successfully reduced the communication failure rate from 5% to 0.3% and saved 20% on wiring budget by using industrial-grade 100Mbps RJ45 in the AGV vehicle control system.

Chapter 3: 100Mbps RJ45 Connector 's Market Competitive Advantages

In the current dominance of Gigabit/10 Gigabit high-speed connectors, 100Mbps RJ45 it occupies a niche market with the following advantages:

Cost Advantage : The unit price is only 1/3~1/2 of Gigabit connectors, suitable for large-scale deployment (such as school computer rooms, security monitoring).

Compatibility : Backward compatible with 10M networks, and upward compatible with temporary support for short-distance Gigabit transmission (up to 50 meters) through Cat5e cables.

Environmental Adaptability : Industrial-grade products support IP67 protection and oil-resistant design, suitable for harsh environments such as food processing and mining.

Low Power Consumption : No high-speed chip driver is required, reducing power consumption by 40%, suitable for outdoor equipment powered by solar energy.

According to industry statistics, in 2023, the global 100Mbps RJ45 Connector Factory shipment volume still accounts for 18% of the total RJ45 volume, with 60% flowing to infrastructure projects in emerging markets such as Southeast Asia and Africa.

Chapter 4: Manufacturing Capabilities and Quality Control System of 100Mbps RJ45 Connector Factory

Professional 100Mbps RJ45 Connector Factory needs to have the following core capabilities:

Precision Stamping Process : Uses continuous die stamping machines to manufacture contacts, with tolerance control within ±0.03mm, ensuring a tight fit with the jack.

Automated Assembly Line : Uses machine vision to locate cables and contacts, achieving high-efficiency production of 300 pieces per minute, with a manual intervention rate of <5%.

Full-process Testing : Includes continuity testing (four-wire method for impedance detection), insertion and extraction force testing (insertion force ≤50N, extraction force ≥10N), and salt spray testing (48 hours without corrosion).

Environmental Compliance : Complies with RoHS and REACH regulations, providing halogen-free options to meet EU export requirements.

Taking the leading domestic 100Mbps RJ45 Connector Factory as an example, its monthly production capacity reaches 20 million pieces, supporting non-standard customization (such as colored housings, LED indicators), and providing 48-hour sample delivery service. The factory has passed ISO 9001 and IATF 16949 certifications, providing stable supply to companies such as Hikvision and Dahua for over 10 years.

Conclusion

100Mbps RJ45 connectors, with their economic efficiency, compatibility, and environmental adaptability, remain an important choice for industrial control and basic network construction. Choosing a 100Mbps RJ45 Connector Factory with mature technology and strict quality control can provide reliable assurance for enterprises to achieve cost reduction and efficiency improvement and long-term stable operation.
