Gigabit RJ45 Connector — Core Components and Selection Guide for Enterprise Network Upgrades

Chapter 1: Gigabit RJ45 Connector Technical Specifications and Design Advantages

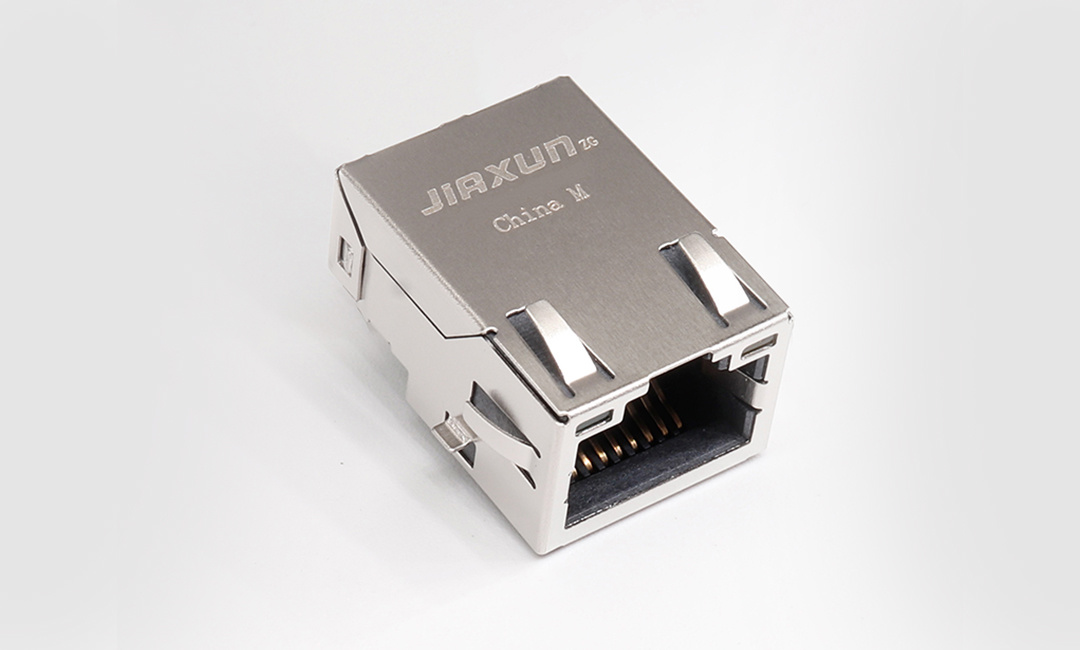

Gigabit RJ45 Connector (also known as 1000M RJ45 connector) is a core interface supporting Gigabit Ethernet (1Gbps) transmission, compatible with the IEEE 802.3ab standard, and suitable for Cat5e and above cables. Its key technical features include:

Transmission Performance : Supports 1000Mbps full-duplex communication, with a bandwidth of up to 250MHz, meeting the high bandwidth demands of high-definition video and large file transfers.

PoE Power Supply Capability : Supports PoE (15.4W) and PoE+ (30W), capable of simultaneously powering IP phones, wireless APs, and other devices, simplifying wiring complexity.

Physical Compatibility : Adopts a standard 8P8C interface design, backward compatible with 100M networks, with a plug-in life exceeding 750 times, suitable for office and light industrial environments.

Compared to traditional 100M RJ45, Gigabit RJ45 Connector it has higher requirements for contact plating (usually gold-plated or nickel-plated) and wiring accuracy to reduce signal attenuation and crosstalk. For example, the gold plating thickness of its contacts needs to be ≥1.27μm, and the wire pair twist pitch needs to be strictly matched to reduce electromagnetic interference. As a basic component for network upgrades, Gigabit RJ45 Connector it plays an irreplaceable role in small and medium-sized enterprise network renovations and smart building deployments.

Chapter 2: Gigabit RJ45 Connector Core Application Scenarios

1000M RJ45 Connector is widely used in the following scenarios:

Enterprise Local Area Network (LAN) Upgrade : Replacing outdated 100M equipment to improve the efficiency of internal file sharing and cloud collaboration. For example, supporting multiple users to access NAS storage or ERP systems simultaneously.

Industrial Automation Control : Establishing stable connections between PLCs, industrial cameras, and other devices to ensure real-time data transmission and device synchronization, reducing production line delays.

Intelligent Security System : Gigabit bandwidth can support more than 16 1080P cameras to transmit data simultaneously, avoiding monitoring screen freezes or dropped frames.

Home Network Optimization : Working with Wi-Fi 6 routers to provide wired backbone network support for 4K streaming media and online games.

It is worth noting that in industrial scenarios, Gigabit RJ45 Connector it needs to have an IP67 protection level and high-temperature resistance (-40℃~85℃) to cope with harsh environments such as dust and vibration. Home users, however, are more concerned about plug-and-play and cost-effectiveness, driving market demand for cost-effective solutions.

Chapter 3: Manufacturing Process and Quality Certification Standards

Gigabit RJ45 Connector Reliability depends on precise manufacturing processes:

Material Selection : Contact terminals use phosphor bronze or beryllium copper alloy to ensure elasticity and conductivity; insulators use flame-retardant PC or LCP materials, with a flame retardancy rating of UL94 V-0.

Precision Machining : Using high-speed stamping technology to manufacture contacts, with tolerances controlled within ±0.02mm, ensuring close contact with the cable jack.

Automated Assembly : Using a visual positioning system to accurately connect the cable and contacts, avoiding poor soldering or misalignment caused by manual operation.

Strict Testing : Including continuity testing, return loss (RL) detection, and insertion force testing (usually requiring insertion force ≤50N, extraction force ≥10N).

Mainstream suppliers (such as JAE, Molex) 1000M RJ45 Connector have passed TIA-568-C.2 and ISO/IEC 11801 certifications, and some industrial-grade products also meet the EN 61076-3-104 standard. In addition, environmental compliance (such as RoHS, REACH) has become a core consideration for global procurement.

Chapter 4: Market Trends and Supplier Selection Strategies

With the acceleration of enterprise digital transformation, Gigabit RJ45 Connector market demand continues to grow. According to research institutions, the global Gigabit Ethernet equipment market size exceeded US$12 billion in 2023, with a compound annual growth rate of 8.3%. When choosing suppliers, users need to pay attention to:

Technical Adaptability : Confirm whether the connector is compatible with the port density and heat dissipation design of existing switches and routers.

Customization Capability : Some scenarios require customized shell colors (such as orange for industrial grade), LED indicators, or dust covers.

Supply Chain Stability : Prioritize suppliers with ISO 9001 certification and support for small-batch, fast delivery.

Taking leading domestic suppliers as an example, Gigabit RJ45 Connector they have achieved domestic substitution, reducing costs by more than 30%, while providing a five-year warranty and on-site technical support. In the future, with the popularization of Wi-Fi 7 and 2.5G/10G networks, Gigabit RJ45 will still maintain an important position in the mid-range market, becoming the preferred solution for cost-effective network upgrades.

Conclusion

Gigabit RJ45 Connector As a "last-mile" solution for enterprise network upgrades, with its high compatibility, stable power supply, and cost advantages, it continuously empowers digital transformation. Choosing products that meet the needs of the scenario and have passed authoritative certifications will lay a solid foundation for enterprises to build efficient and future-oriented network infrastructure.
