Fiber Optic Module Selection Guide: How to Choose the Right Model Based on Network Requirements?

Introduction: Why Selecting the Right Fiber Optic Module Is Crucial

As data centers are built, enterprise networks are upgraded, and 5G communications advance, the demand for network transmission speeds and stability continues to grow. Fiber optic modules, serving as the core components for network interconnection, come in a wide variety of types and feature complex parameters. If chosen improperly, they can easily lead to Compatibility issues, insufficient transmission distance, or wasted costs 。
This article will thoroughly explain, from multiple perspectives such as rate, wavelength, interface, and application scenarios, how to choose the right fiber optic module based on your specific needs.

I. Basic Classification of Fiber Optic Modules

Before selecting a model, you should first gain a basic understanding of optical fiber modules.

Classified by Rate

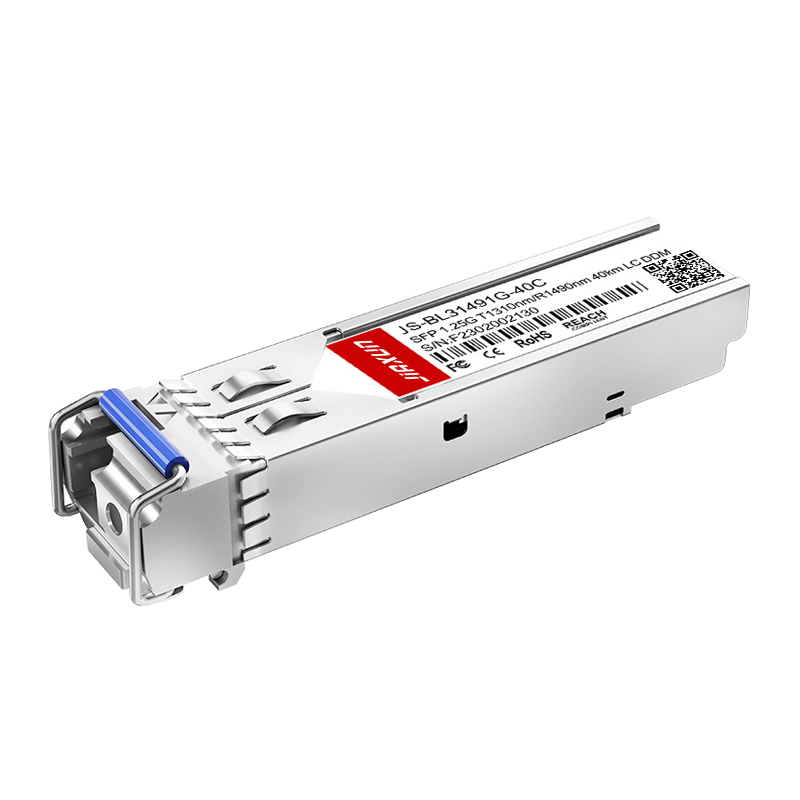

1G SFP Module : Suitable for traditional Gigabit Ethernet, commonly found in small businesses.

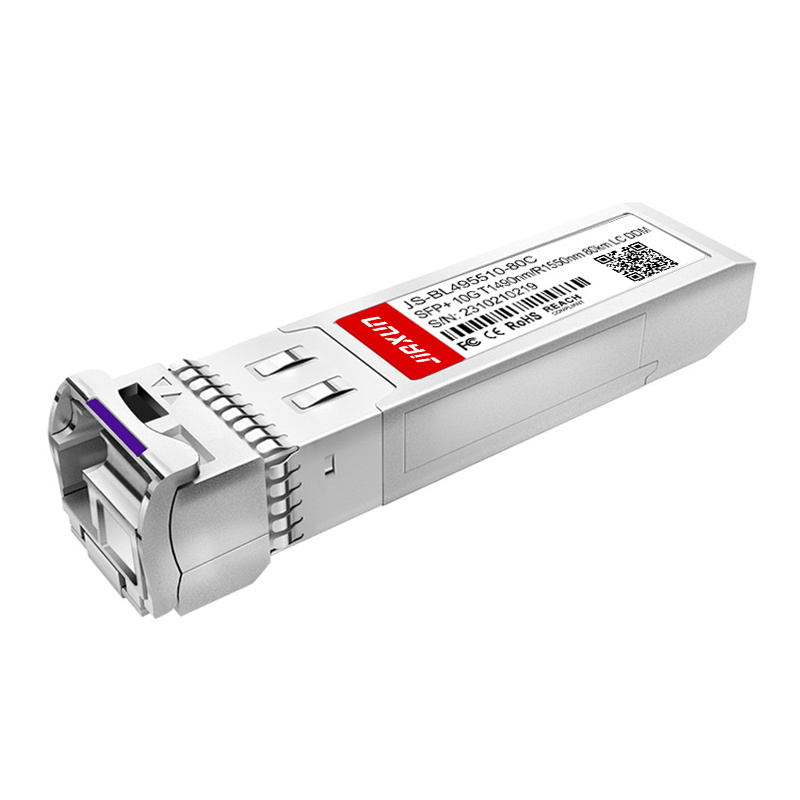

10G SFP+ Module Currently mainstream, widely used in data centers and backbone networks.

25G/40G/100G Modules High-bandwidth applications, such as cloud computing and big data.

400G Module : A new generation of data centers is being deployed.

Classified by fiber optic type

Single-mode optical module (SMF) : The transmission distance is long, reaching from tens to over a hundred kilometers.

Multi-mode optical module (MMF) : Low cost, suitable for short-distance transmission (tens to hundreds of meters).

Classified by interface type

LC interface : Most common, suitable for SFP/SFP+/SFP28 modules.

MPO/MTP Interface : Designed for 40G/100G high-speed modules, supporting parallel optical transmission.

SC Interface : Older standards are still being used by some operator devices.

Classified by Function

Standard optical module : Meets basic internet needs.

Industrial-grade optical module : Suitable for harsh environments (-40°C to 85°C).

DWDM/CWDM Modules : Suitable for large-scale fiber-optic transmission and wavelength-division multiplexing systems.

II. Core Factors in Fiber Optic Module Selection

In the actual procurement process, engineers and purchasing personnel need to comprehensively consider the following key factors:

1. Rate Requirement

If it is Small and Medium-sized Enterprise Park Network , Gigabit or 10-Gigabit modules are sufficient.

If it is Data center It is recommended to choose 25G/100G or even 400G modules to meet the demands for high-speed interconnectivity.

If it is Video Surveillance and Security , typically, 10-gigabit modules can already meet the bandwidth requirements.

2. Transmission Distance

Inside office buildings or machine rooms: Multimode optical modules (850nm) are more cost-effective.

Metropolitan area networks or inter-regional communication: Single-mode optical modules (1310nm/1550nm) are more suitable.

Ultra-long-haul backbone network: Selection required ZX Long-Distance Module (40km, 80km, 120km).

3. Interfaces and Compatibility

When selecting equipment, it is essential to confirm the compatibility requirements of the equipment vendors (such as Huawei, Cisco, H3C, and ZTE).

If the procurement budget is limited, you can choose Third-party compatible optical modules While ensuring performance, also reduce costs.

If the device has "module lock" enabled, only the original factory module can be used.

4. Environment and Stability

Commercial-grade modules are suitable for standard data center environments.

Industrial-grade modules are suitable for environments with high or low temperatures, or strong electromagnetic interference, such as rail transit and the energy industry.

5. Cost Budget

High-speed optical modules (such as 100G QSFP28 and 400G QSFP-DD) are relatively expensive.

Under the premise of meeting performance requirements, reasonably selecting third-party compatible modules can save 20% to 50% of the costs.

III. Selection Recommendations for Different Application Scenarios

1. Corporate Park Network

It is recommended to choose 1G/10G SFP or SFP+ module

Transmission distances typically do not exceed 1 km, and multimode fiber optic cables are sufficient.

Low cost, excellent compatibility, and meets office needs

2. Data Center

Core switch connected to servers: 25G/100G Optical Modules

Large-scale lateral interconnection: QSFP28 (100G), QSFP-DD (400G)

Recommended for use MPO/MTP Interface , Enhance wiring efficiency

3. Telecommunications Operators

Metropolitan Area Network vs. Backbone Network: 10G/40G/100G Single-mode Optical Modules

Long-distance transmission: DWDM module + EDFA optical amplifier

FTTH Access Network: Commonly Used GPON/EPON Optical Module

4. Video Surveillance and Security

Generally used 1G/10G SFP/SFP+ Modules

There are many outdoor surveillance locations; it is recommended to choose Industrial-grade modules , Enhance reliability

4. How to Avoid Selection Mistakes?

Focus only on the rate, not the wavelength. → Easily leads to link mismatch

Ignoring compatibility → Cannot be recognized after plugging in the module

Pursuing low prices while neglecting quality → Counterfeit modules have poor stability and tend to disconnect easily

Not considering future expansion → Currently meets the requirements, but the upgrade cost is too high

Solution ：

Clearly define your actual needs to avoid blindly purchasing high-end modules.

Prioritize suppliers with real-world case studies and test reports.

Considering the network development over the next three years, choose highly scalable modules.

V. Future Development Trends of Fiber Optic Modules

The rate continues to increase. 100G is becoming widespread, 400G modules have entered commercial use, and 800G modules are already in the testing phase.

Silicon Photonics Technology : Reduce power consumption and costs, while enhancing transmission speed and stability.

Miniaturization and High Density : The module is more compactly packaged, making it well-suited for high-density cabling in data centers.

Domestic substitution accelerates Domestic manufacturers are gradually becoming more mature in terms of technology and compatibility, offering better value for money.

6. Summary

When selecting fiber optic modules, you shouldn't rely solely on price and speed—instead, you need to consider them comprehensively. Transmission distance, interface type, compatibility, operating environment, and future scalability 。

Enterprise users: It is recommended to Cost-effectiveness and Compatibility As a priority.

Data Center: Key Considerations High bandwidth and low latency 。

Operator: places even greater emphasis on Long Distance and Stability 。

Choosing the right fiber optic modules not only ensures the long-term stable operation of the network but also significantly reduces subsequent operational and maintenance costs.
