Application of toroidal shielded RJ45 connectors in industrial control cabinets to enhance equipment's anti-interference capability

Chapter 1: Challenges in Signal Transmission of Industrial Control Cabinets and the Necessity of Magnetic Ring Shielding Technology

In industrial environments, signal transmission in industrial control cabinets faces numerous challenges. Sources of electromagnetic interference are widespread; high-frequency equipment such as motors, inverters, and welding equipment generate a large amount of electromagnetic radiation. This radiation, like invisible "interference waves," constantly impacts the signal transmission system. At the same time, crosstalk between cables and ground loop interference can also seriously harm signals, potentially leading to data transmission errors and equipment malfunctions.

Traditional unshielded RJ45 connectors are inadequate in such environments. Their low protection level makes them vulnerable to external electromagnetic interference, and their corrosion resistance is also weak, making them unsuitable for the harsh conditions of industrial environments.

And Magnetic Ring Shielded RJ45 Connector demonstrates its core value. According to industry data, shielded types accounted for over 40% of the global RJ45 connector market in 2023, with a compound annual growth rate of 8.7%, fully reflecting the market demand for shielded connectors. In typical scenarios such as PLC control systems, industrial robots, and intelligent production line data acquisition terminals, Magnetic Ring Shielded RJ45 Connector all play an important role, providing reliable protection for signal transmission.

Chapter 2: Magnetic Ring Shielded RJ45 Connector 's Technical Principles and Performance Advantages

Magnetic Ring Shielded RJ45 Connector The outstanding performance of the magnetic ring shielded RJ45 connector stems from its unique technical principles and excellent performance. The common-mode interference suppression mechanism of the magnetic ring is its core; the common-mode choke (CMC) effectively cancels out differential-mode signals and suppresses common-mode noise through symmetrical winding coils. The magnetic ring material uses ferrite, which has good frequency response characteristics. Actual test data shows that under a 100MHz interference source, the magnetic ring can reduce EMI radiation by more than 20dB.

The full-shielding structure design forms triple protection. The metal braided layer and metal shell achieve 360° electromagnetic shielding, blocking electromagnetic interference from all directions; gold-plated contacts and nickel plating significantly improve corrosion resistance and extend the connector's service life; in terms of protection level, it has passed a 1-meter water immersion test, reaching IP67/IP68 level, and can withstand harsh environments such as humidity.

Compared to unshielded connectors, Magnetic Ring Shielded RJ45 Connector has obvious advantages. In terms of transmission stability, tests near inverters show that the bit error rate of the shielded type is reduced to below 0.001%; salt spray tests show that the oxidation rate of the shielded contacts is slowed by 80% during its service life.

Chapter 3: Practical Application Cases and Effect Verification in Industrial Control Cabinets

Magnetic Ring Shielded RJ45 Connector In the practical application of industrial control cabinets, the effect is significant. In the real-time control of automotive manufacturing production lines, after a certain car company's final assembly workshop adopted this connector, it successfully solved the problem of robotic arm signal delay. After the renovation, equipment downtime was reduced by 65%, and production capacity increased by 12%, bringing tangible benefits to the company.

In terms of high-reliability connections in power systems, a certain substation monitoring system deployed Magnetic Ring Shielded RJ45 Connector , effectively coping with strong electromagnetic pulse interference. Test results show that next to a 10kV switchgear, signal attenuation is controlled within 0.5dB, ensuring the stable operation of the monitoring system.

The chemical industry environment is extremely harsh. After a certain petrochemical plant's explosion-proof control cabinet applied this connector, it could withstand oil stains and temperature variations from -40℃ to 85℃. Customer feedback indicates that the equipment has operated continuously for 3 years without failure, and maintenance costs have been reduced by 40%, fully demonstrating its reliability in harsh environments.

Chapter 4: Our Company's Product Recommendations

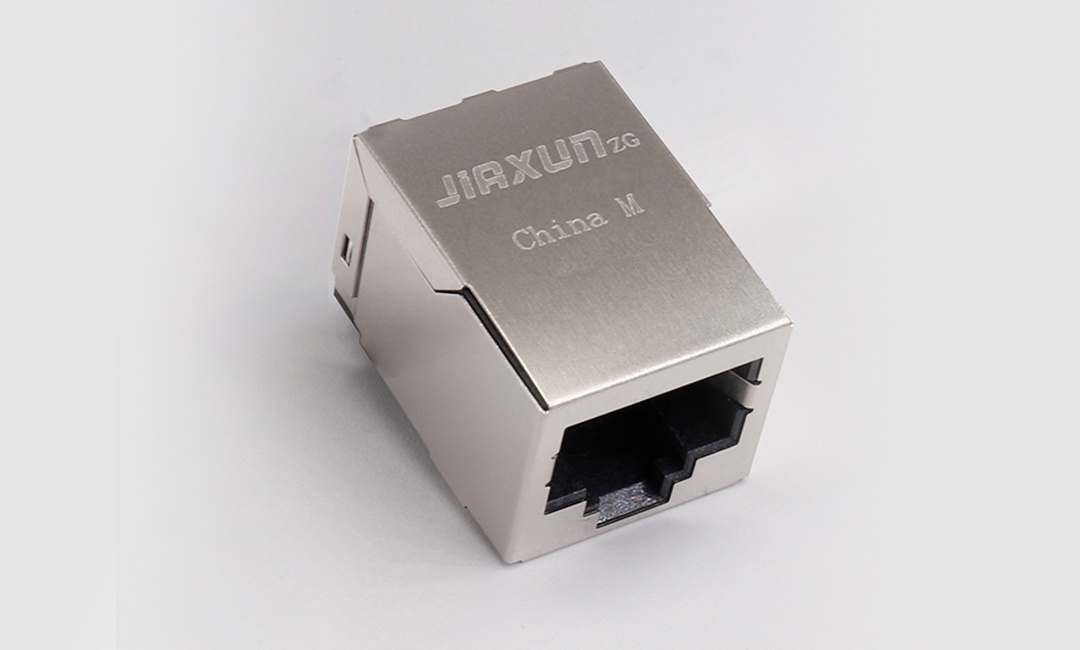

Our company's Magnetic Ring Shielded RJ45 Connector has excellent performance. With a variety of product models, it can meet the needs of different scenarios. Its shielding effectiveness is ≥60dB in the 30MHz-1GHz frequency band, the protection level reaches IP68, it can be immersed in 1 meter of water for 24 hours, and it has also passed UL94-V0 flame retardant certification and CE electromagnetic compatibility certification, ensuring quality.

In terms of differentiated design, tool-free termination technology reduces installation time by 70%, supporting rapid on-site maintenance; the shock-resistant structure has passed the IEC60068-2-6 vibration test (20g, 10-2000Hz); compatible with various cables, supporting Cat6A/7 network cables, with a transmission rate of up to 10Gbps.

Typical application scenarios are extensive. In automated production line control cabinets, it can withstand welding sparks and dust; in port crane remote monitoring systems, it can withstand sea wind corrosion; in new energy battery production lines, it can cope with high-frequency charge and discharge interference.

After a certain food and beverage company used our company's products, the equipment failure rate dropped from 3 times per month to 0.5 times. We provide a 3-year warranty and customized EMC test reports, as well as 7×24-hour technical support and a 48-hour emergency spare parts delivery service commitment, providing customers with comprehensive protection. Choosing our products will safeguard your industrial control cabinet signal transmission.
