UL Certified RJ45 Module: Not only meets international standards, but also ensures stable network transmission

I. UL Certification: The Core Barrier to Network Infrastructure Security Compliance

UL certification holds significant authority in the field of network infrastructure, with its standards for RJ45 modules being both scientific and stringent. Based on the UL 498A (2019 edition) standard, clear requirements are set for UL certified RJ45 modules regarding electrical performance, mechanical durability, and fire rating. In the testing system, the initial contact resistance must be ≤30mΩ, the insulation resistance ≥500MΩ, and it must also pass the 1000VAC dielectric strength test. In terms of materials, a UL94V-0 flame-retardant housing is required; in the vertical combustion test, dripping materials must not ignite cotton wool.

In network engineering, UL certification is indispensable. Uncertified UL certified RJ45 module connectors may present numerous risks, such as signal attenuation exceeding 20dB@100MHz, and substandard combustion ratings may lead to fire hazards. From a compliance perspective, North American data centers follow the ANSI/TIA-568.2-D standard, mandating the use of UL certified products. Simultaneously, UL certification also forms the basis for mutual recognition of EU CE certification, providing strong assurance for network engineering compliance.

II. Core Technical Indicators of UL Certified RJ45 Modules

Electrical performance is UL certified RJ45 modules key. It can stably support 10Gbps Ethernet transmission, with return loss ≥20dB in the 1-100MHz range, ensuring efficient data transmission. In terms of power compatibility, it has PoE++ power supply capabilities, reaching 100W, and employs a diode bridge reverse connection protection design to enhance safety. Regarding anti-interference, a double-shielding structure of nickel plating (100μ") plus gold plating (50μ") is used to effectively reduce signal interference.

Physical durability has also undergone rigorous verification. Mechanical life ≥1500 insertion/extraction tests, contact retention force ≥30lbs, capable of handling frequent insertion/extraction scenarios. Strong environmental adaptability, operating temperature range from -40℃ to 85℃, modules using LCP materials are even more adaptable to harsh environments. For installation, the IDC terminal supports 22-26AWG wire crimping, 250 times of repeated termination without deformation, ensuring reliable installation.

III. Value Demonstration of UL Certified Modules in Typical Scenarios

In data centers, UL certified RJ45 connectors have obvious advantages. Supporting 1U rack mounting of 288 ports, with only a 0.75-inch panel spacing, meeting high-density deployment needs. Low-power design, each port ≤0.5W, and temperature rise controlled at <30℃@full load, achieving energy efficiency optimization. After use in a certain financial data center, the annual failure rate dropped from 3.2% to 0.4%, fully demonstrating its stability.

In industrial automation scenarios, UL certified RJ45 modules perform excellently. With IP67 protection rating, conforming to the IEC 60529 standard, vibration resistance up to 5-500Hz, 10g, adapting to complex industrial environments. Signal delay ≤10ns, supporting TSN time-sensitive networks, ensuring real-time communication. After application in a certain automobile assembly line, production line downtime was reduced by 65%.

In intelligent building integrated wiring, this module integrates PoE power supply, supporting the 802.3bt standard, providing 90W power supply, and capable of automatically identifying PD devices. Automatic sleep in ECO mode, power consumption reduced by 80%, achieving green energy saving. After use in a certain commercial complex, annual electricity savings were approximately 120,000 yuan.

IV. Our Product Recommendations

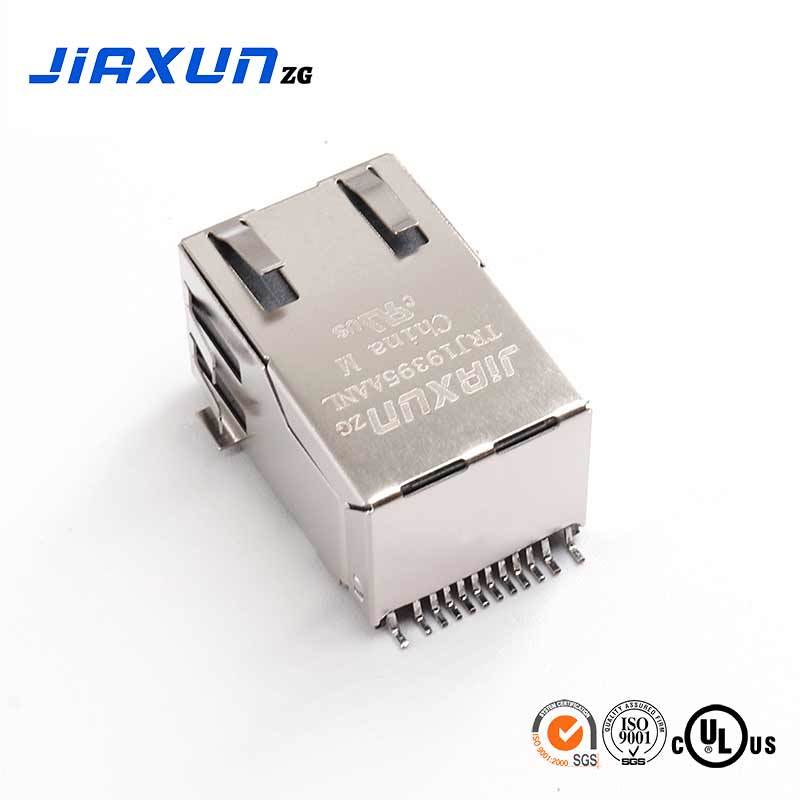

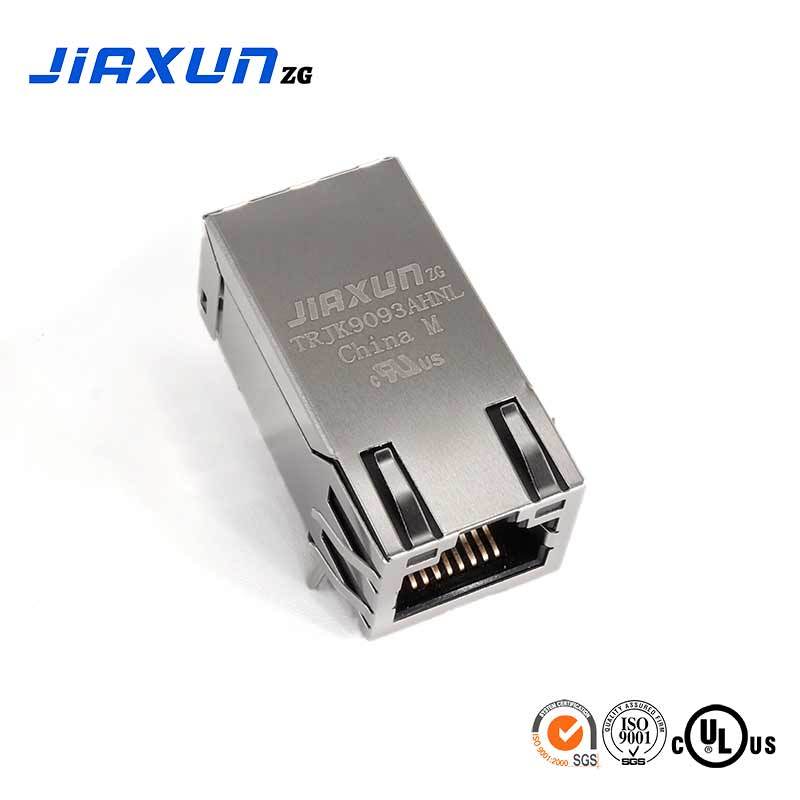

(I) Flagship Product: [JXJK2075A53NL] Series

Core parameters are eye-catching, transmission rate supports 10Gbps (Cat6A) and 25Gbps (Cat6E), fire rating is UL94V-0 (LCP material), and protection rating is optional IP68. Technical advantages are significant: patented 3D three-dimensional shielding structure reduces crosstalk by 20dB; built-in LED status indicator displays link on/off and rate adaptation, facilitating intelligent diagnosis; tool-free termination, 30 seconds/port, and supports T568A/B dual color codes, enabling rapid deployment.

(II) Industry Customized Solutions

Medical-grade products have antibacterial coatings, silver ion release ≤0.01ppm, strong anti-electromagnetic interference capability, 30-1000MHz attenuation ≥40dB. Vehicle-specific models have a wide operating range, -40℃ to 125℃, and pass AEC-Q200 certification. Security-specific models support the ONVIF protocol and can accept 12V/24V dual power supplies.

(III) Quality Assurance System

Comprehensive certification matrix, possessing UL (E335678), ETL (No.123456), CE (EMC/LVD) certifications. Strict testing process, 100% full inspection of contact resistance, insulation resistance, and signal integrity. Powerful service commitment, providing 10-year warranty and 7×24-hour technical support.

(IV) Market Competitiveness Analysis

Outstanding cost-effectiveness, with the same performance, the price is 15%-20% lower than similar products. Secure supply chain, localized production shortens delivery time to 7 working days, using JIT inventory management. After use in a certain provincial government cloud center, operation and maintenance costs were reduced by 40%, with positive customer feedback.
