From Selection to Application: A Comprehensive Understanding of Vertical RJ45 Connectors

Chapter 1: Basic Introduction to Vertical RJ45 Connectors

Vertical RJ45 Connector A standard interface component widely used in network communication and industrial automation fields. Its characteristic is that the connector is perpendicular to the PCB board, suitable for equipment designs with limited space. Compared to angled (90°) RJ45 connectors, the vertical structure is more convenient for vertical insertion and removal, especially suitable for rack-mounted switches, routers, and industrial control equipment where space utilization is critical.

From a technical parameter perspective, Vertical RJ45 Connector They are mainly divided into shielded (STP) and unshielded (UTP) types, supporting different transmission standards such as Cat5e, Cat6, and Cat6a, meeting the transmission needs of hundred-megabit, gigabit, and even ten-gigabit Ethernet. In addition, the applicable wire gauge range is usually between AWG22~26, ensuring compatibility with mainstream network cables.

In terms of application areas, Vertical RJ45 Connector Due to its compact structure and convenient installation, it is widely used in:

Network communication equipment (such as switches, routers, fiber optic converters)

Industrial automation control systems (PLC, HMI, industrial Ethernet equipment)

Smart home and security systems (IP cameras, smart gateways)

Chapter 2: Vertical RJ45 Connector Advantage Analysis

Vertical RJ45 Connector It has significant advantages in engineering design, making it the preferred choice for many equipment manufacturers.

1. Space Optimization Design
Due to the vertical insertion and removal method, the vertical RJ45 effectively reduces PCB space occupation, especially suitable for high-density chassis designs. For example, in 1U high network equipment, Vertical RJ45 maximizes the use of limited space and avoids wiring conflicts that may be caused by angled connectors.

2. High Stability and Reliability
Industrial grade Vertical RJ45 usually uses a metal shell or reinforced plastic material, with excellent vibration resistance and electromagnetic interference (EMI) performance, suitable for harsh industrial environments. At the same time, high-quality gold-plated contacts ensure long-term stable insertion and removal, reducing the risk of poor contact.

3. Convenient Installation and Maintenance
Compared to angled RJ45 connectors, vertical connectors are more intuitive in wiring management, making it easy for field engineers to quickly install and maintain. In addition, some models support tool-free snap-in design, further improving assembly efficiency and reducing labor costs.

Chapter 3: How to Choose and Install Correctly?

1. Key Selection Factors

When purchasing Vertical RJ45 Connector the following factors should be considered comprehensively:

Transmission Standard : Cat5e is suitable for Gigabit networks, while Cat6/Cat6a supports higher bandwidth requirements.

Shielding Requirements : Shielded (STP) models are recommended for industrial applications to reduce signal interference.

Material and Durability : Products made of high-temperature resistant and flame-retardant materials (such as UL94 V-0 certification) are preferred to ensure long-term reliability.

2. Installation Precautions

PCB Layout Optimization : It is recommended to reserve sufficient insertion and removal space to avoid interference with other components.

Welding Process : When using wave soldering or reflow soldering, pay attention to temperature control to prevent plastic deformation.

Cable Management : Using RJ45 connectors with latches can prevent accidental disconnection and improve equipment stability.

Chapter 4: High-Quality Vertical RJ45 Connector Product Recommendations

To meet the needs of different application scenarios, we have selected the following high-performance Vertical RJ45 Connector for your reference:

1. Industrial Grade High Protection Model

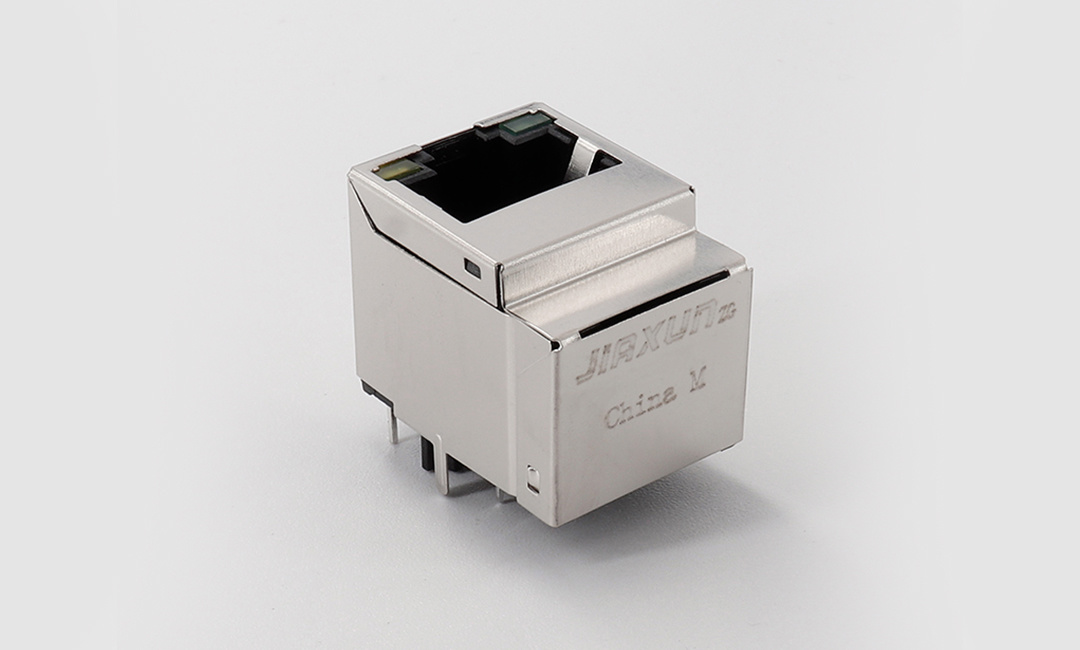

Jiaxun Brand Cat6 Shielded Vertical RJ45

Features: Metal shell, IP67 protection level, suitable for harsh industrial environments

Applicable Scenarios: Factory automation, outdoor communication equipment

2. High Cost-Effective Standard Model

Jiaxun Brand Cat5e Unshielded Vertical RJ45

Features: Economical and practical, compatible with mainstream network equipment

Applicable Scenarios: Enterprise switches, smart home terminals

3. High-Speed Transmission Professional Model

Jiaxun Brand Cat6a Super Six Category Vertical RJ45

Features: Supports 10Gbps transmission, low crosstalk design

Applicable Scenarios: Data centers, high-performance servers

Purchase Suggestions

Prioritize products that have passed international certifications such as UL and CE to ensure quality compliance.

If you need sample testing or bulk purchasing, please contact our technical support team to provide customized solutions.

Conclusion

Vertical RJ45 Connector With its space optimization, high stability, and easy maintenance advantages, it has become an important component in modern network equipment design. Whether it's industrial automation, data centers, or smart home systems, choosing the right RJ45 connector This significantly improves device performance and reliability. For more product details or professional selection support, please contact us anytime; we will provide you with the optimal solution.
