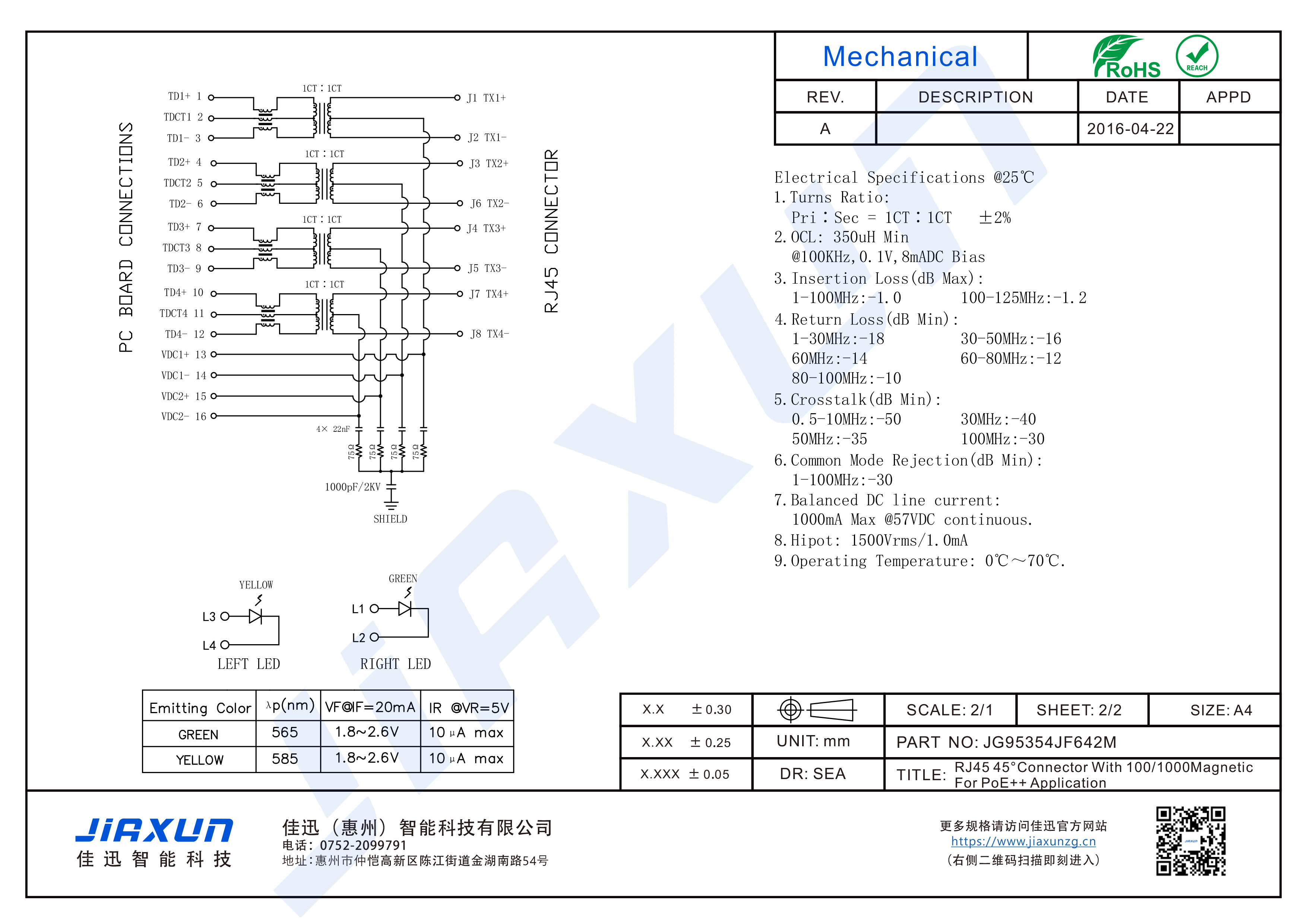

RJ45 45°Connector With 100/1000 Magnetic For PoE++ Application

Key Features:

NOTES:
1.Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3bt specification

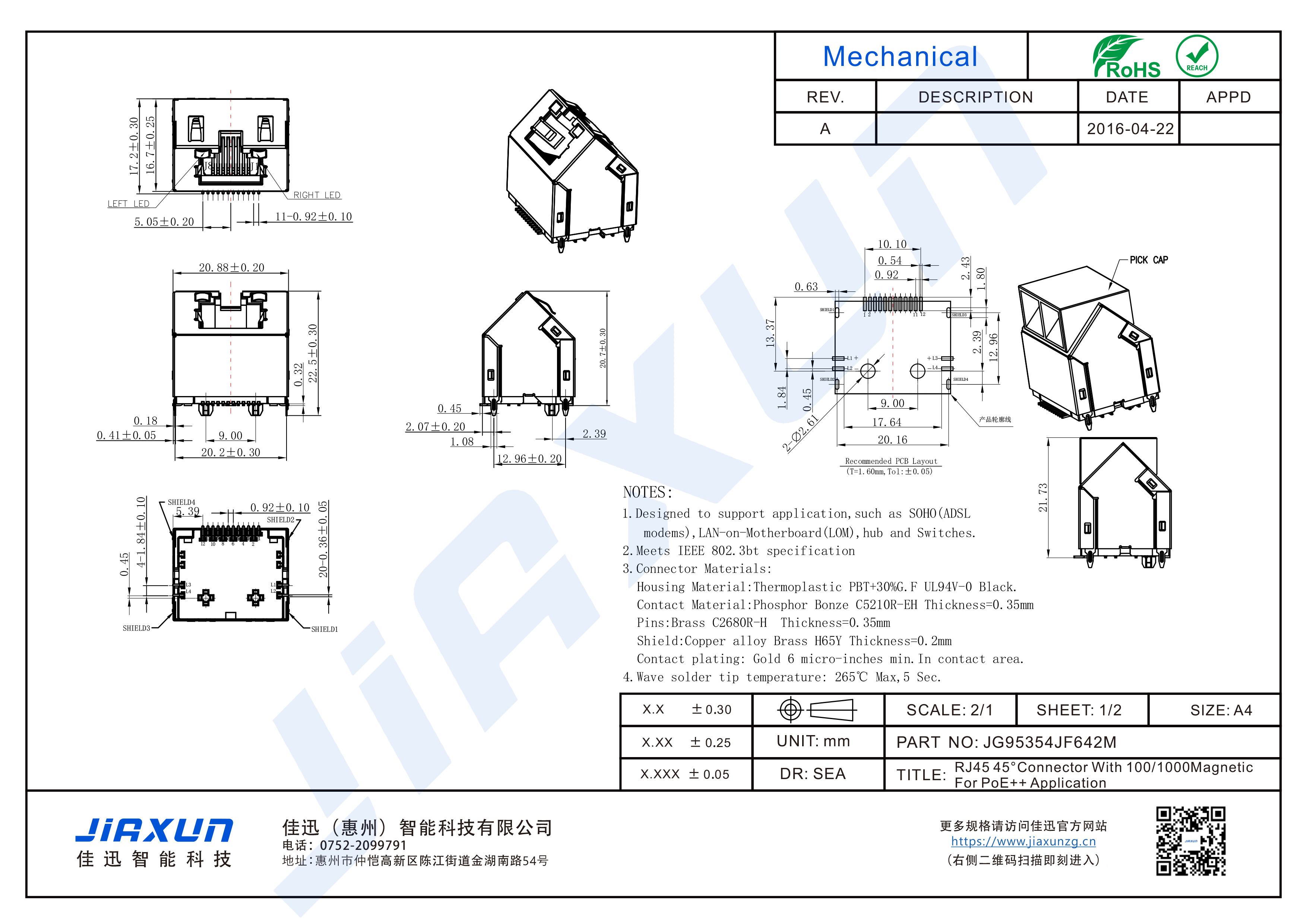

3.Connector Materials:
Housing Material:Thermoplastic PBT+30%G.F UL94V-0 Black.
Contact Material:Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins:Brass C2680R-H Thickness=0.35mm
Shield:Copper alloy Brass H65Y Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec.
5.UL Certification: File Number E321120

Contact Us
  • Product Description
  • Parameter
    • Commodity name: RJ45 45°Connector With 100/1000 Magnetic For PoE++ Application
  • NOTES:
    1.Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
    2.Meets IEEE 802.3bt specification
    3.Connector Materials:
    Housing Material:Thermoplastic PBT+30%G.F UL94V-0 Black.
    Contact Material:Phosphor Bonze C5210R-EH Thickness=0.35mm
    Pins:Brass C2680R-H Thickness=0.35mm
    Shield:Copper alloy Brass H65Y Thickness=0.2mm
    Contact plating: Gold 6 micro-inches min.In contact area.
    4.Wave solder tip temperature: 265℃ Max,5 Sec.
    5.UL Certification: File Number E321120
